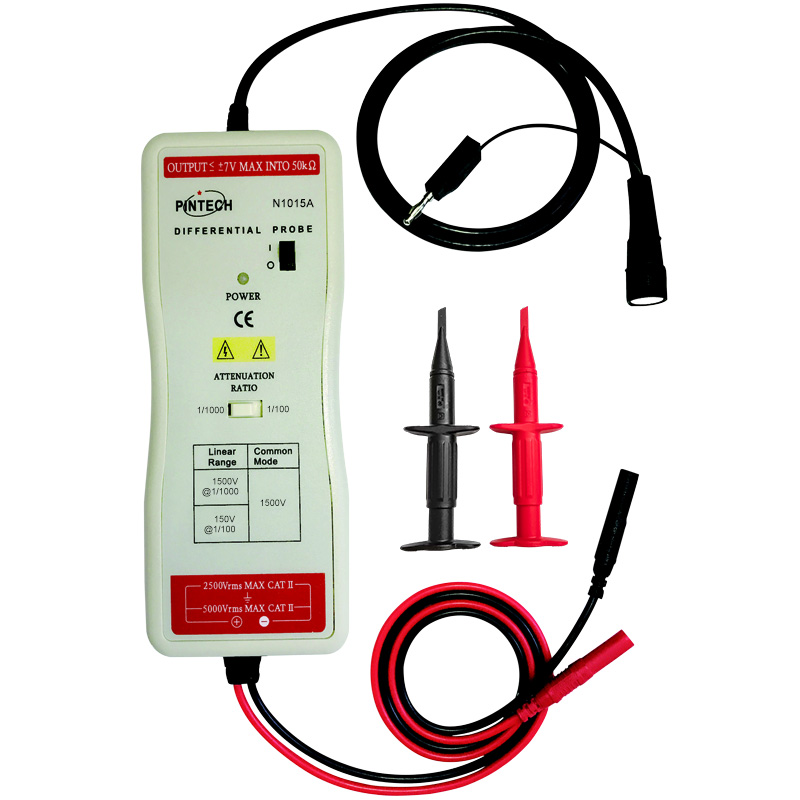

Pintech N1015A (1500Vp-p,100MHz) differential probe
|
Bandwidth : 100MHz
Max. measuring voltage : 1500Vp-p
Attenuation ratio : 1000 : 1/100 : 1
1% accuracy,compatible with any oscilloscope,standard BNC interface. 2 attenuation ratio range,easy to operating.
|
|
Pintech N1015A Specification
| N1015A Specification | | Bandwidth | DC-100MHz | | Accuracy | ±1% | | Input Impedance | 4MO//2 p F each side ground | | Input Voltage | | Swing(into 50 KO load) | 7V | | Offset(typical) | <±5Mv | | Typical | 50O(for using 1M ohm input system oscilloscope) | | Power Supply | | Options | power leads | | Length of BNC Cable | 90cm | | Length of Input Leads | 60cm | | Weight | 500g | | Attenuation Ratio | 1:1000/100 | | CMRR(typical) | -80dB@60Hz,-50d B@100KHz | | Max. input differential-mode voltage(Vp-p) | 1500V@1/1000, 150V@1/100 | | Max. input and ground potential differential voltage(Vp-p) | 1500V@1/1000 & 1/100 | | (CMRR) | CATII 1000V,CAT? 600V |
|
|
