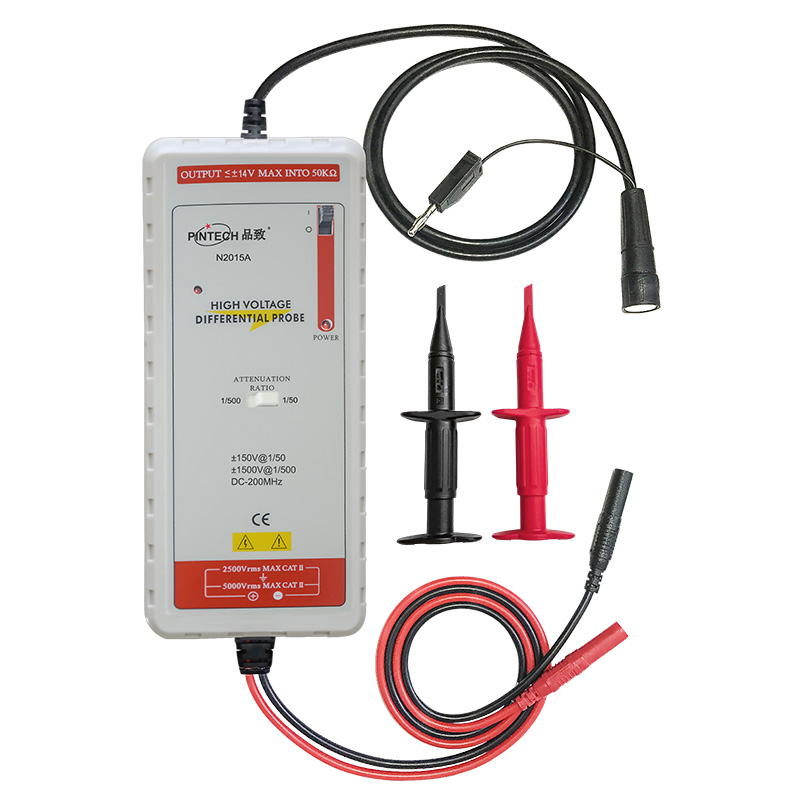

Pintech N2015A (200MHz,2000V) High frequency differential probe
|
200MHz differential probe,standard BNC connector,compatible with any oscilloscope.
|
|
Pintech N2015A Specification
| Model | N2015A | | Bandwidth | 200MHz | | Attenuation ratio | 1:500/50 | | Rise time | 1.75ns | | Accuracy | 1% | | Input voltage | 2000Vp-p AC@1/500200Vp-p AC@1/50 | 1000V DC@1/500100V DC@1/50 | | | AC 700V rms | | Input impedance | 8MO/1pF4MO/2pF | | Output voltage | =7V | | Output impedance | 50O(choose 1MOinput impedance on oscilloscope) | | CMRR | -80dB@60Hz,-50dB@100KHz | | Power supply | 6V DC(use ADP-230 only) |
|
|
