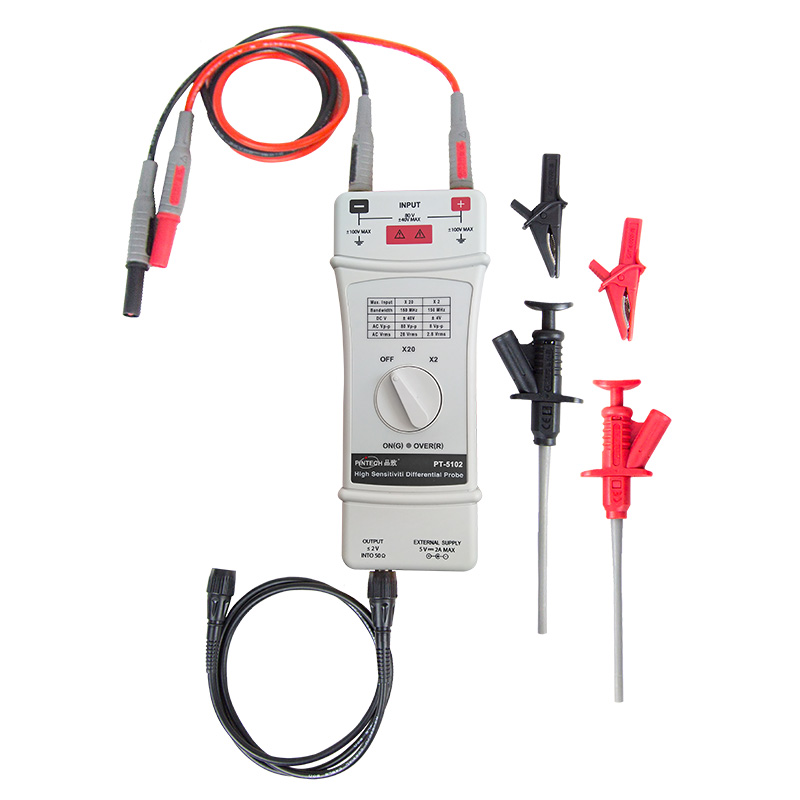

Pintech PT-5102 (150MHz,80Vp-p) high sensitivity differential probe

2mV High Sensitivity ! This differnetial probe provides a safety means of measuring floating potentials for all models of oscilloscopes incomplete safety. It converts the differential voltage (40V DC peak) into a low voltage(=±2V) with reference to the earth for display on the oscilloscope.

Pintech PT-5102 Specification

Model	PT-5102
Bandwidth	DC-150MHz(-3dB)
Accuracy	±2%
Attenuation ratio	x2,x20
Input voltage range	x2 =8Vp-p,±4V DC
Input voltage range	x20 =80Vp-p,±40V DC
Max. Input voltage	80Vp-p
Noise	=1mV rms
Input impedance	50KO//15PF(single end)
Oscilloscope input impedance setting	50O
Consumption/Power supply	500mA/5V DC
Dimension (mm)	220(L)x85(W)x30(H)
Weight	450g
