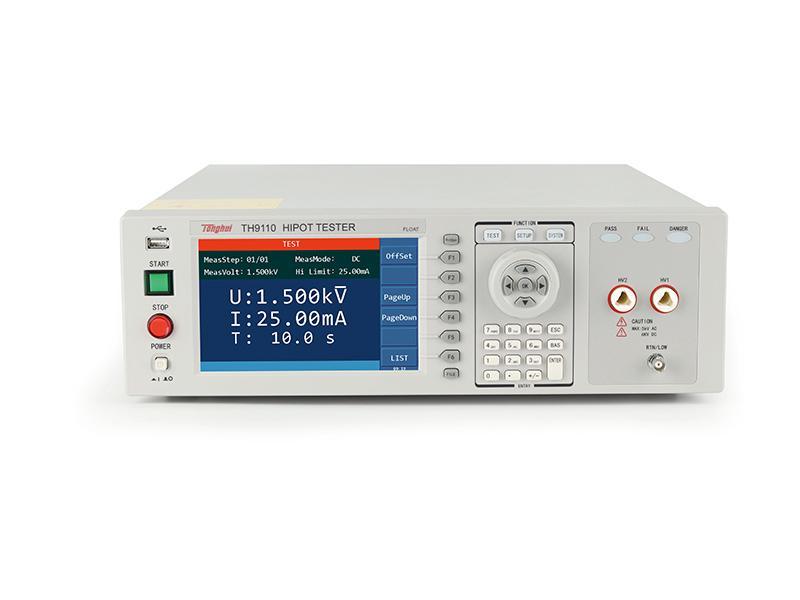

Tonghui TH9110 Series Datasheet
|
Tonghui TH9110 Series Features
- High power: AC 5kV / 100mA / 500VA output
- High security: High-voltage floating output design, in line with the safety requirements of EU standards EN50191 (only TH9110)
Electric shock protection function
- High resolution: 7 inch 800 × 480 dots, TFT-LCD display
- Brand-new operation interface, Chinese and English menu
- ARC detection function
- Contact check function (OSC)
- Breakdown voltage test function
- One-key screen capture function
|
|
Application
Winding devices : Transformers, generators/motors and other products needing high-power withstand voltage test and analysis, such as different types of motor stator, rotor and other high parasitic capacitance products
Electronic components : Capacitors, coils, cores, choke coils, filters and so on
Electrical products : Household appliances, information products, audio-visual equipment, electric heating appliances, lighting equipment
Non-electrical products : Withstand voltage and insulation resistance test for wire, non-woven fabric, insulation materials and so on
New energy automobile
Automated test system
Medical equipment
|
