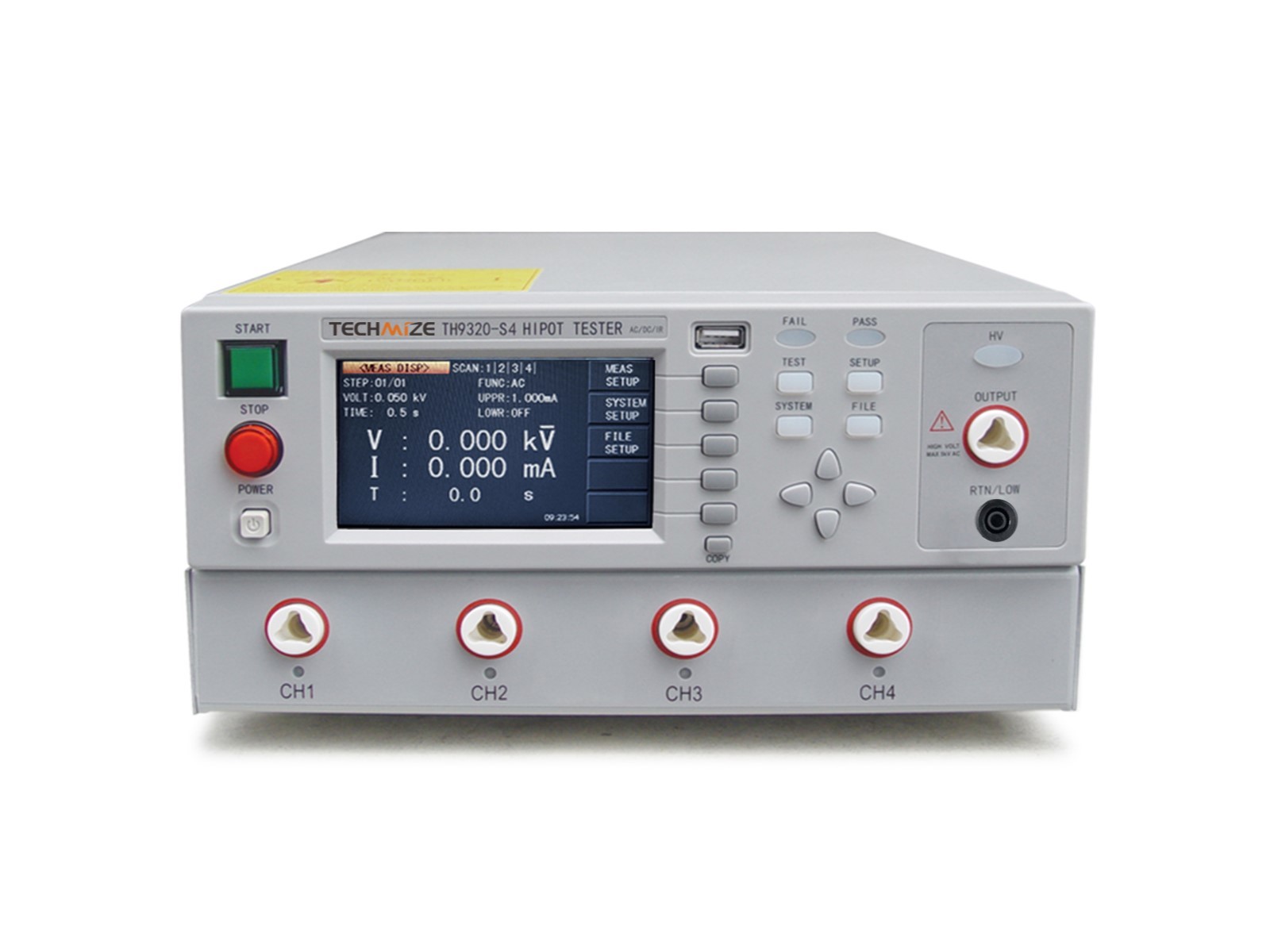

Tonghui TH9320S Series Features

• Output voltage: AC:5kV/20mA; DC:6kV/10mA
• Test voltage of insulation resistance:0.10kV-1.00kV
  Test range of insulation resistance: 1MO-1000MO
• 480×272 dot-matrix, TFT-LCD display
• Provide 4 channels (-S4), 8 channels (-S8) scan interface
• Rapidly discharging and arc detection
• Randomly set voltage rising time and testing time in 999.9 seconds; Freely set waiting time for insulation resistance
• Hold 20 testing steps; 4 testing modes selectable
• Brand new operation interface and concise interface operation design

Brief Introduction

TH9320-S series AC/DC withstanding voltage/insulation resistance tester is an economical and intelligent safety tester with the characteristics of small size,light weight, pleasing appearance and easy operation. TH9320-S series can be widely used in the safety tests of household appliances, transformer, electrical equipments and components
